Description

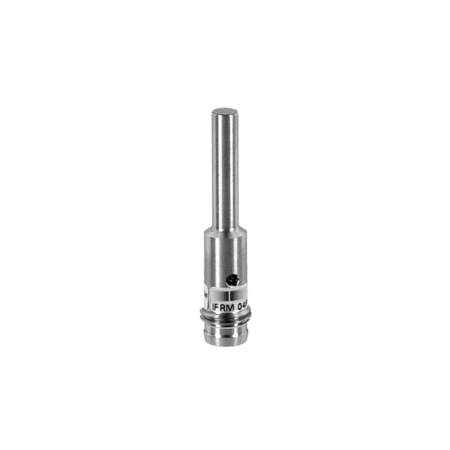

The Baumer IFRM 04N35A3/S35L 10143516 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes an NPN break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. It measures 4 mm in diameter and 36 mm in housing length, connecting via an M8 connector. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 certified for protection against dust and water ingress.
