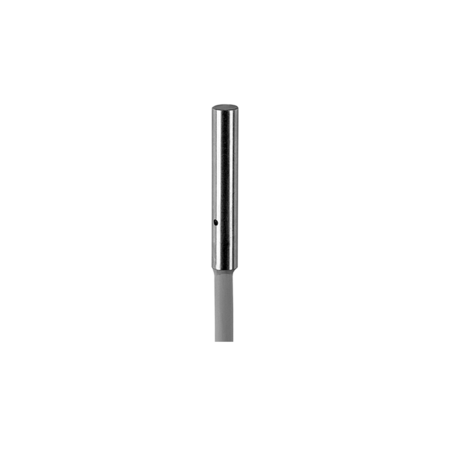

The Baumer IFRM 04P15A1/L 10144583 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. Dimensions include a 4 mm diameter and a 25 mm housing length, connected via a 2 m cable. It operates within a temperature range of -25 to +75 °C and is rated at protection class IP 67.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 25 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
