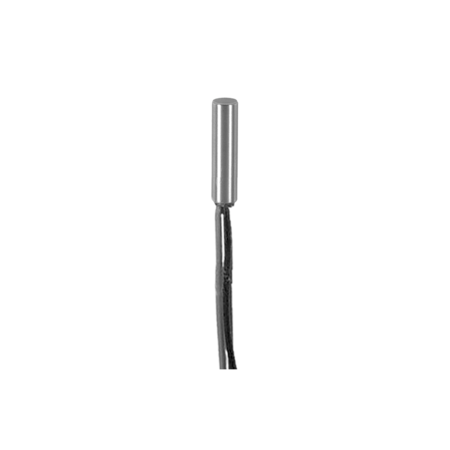

Baumer IFRM 04P15A5/Q (10144456) | PNP NO Inductive Proximity Sensor, 4mm Flush Mount, 1mm Range, 0.5m Wire Leads, Compact 15mm Body, IP67
Baumer
Baumer IFRM 04P15A5/Q 10144456 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of Sr. It operates at a switching frequency of 5 kHz and requires a voltage supply range of 6 to 30 VDC, consuming a maximum of 12 mA with no load. The sensor features a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, made with an LCP sensing face and a stainless steel housing. It measures 4 mm in diameter and 15 mm in housing length, and is connected via 0.5 m wires. Suitable for operating temperatures from -25 to +75 °C, it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 15 mm
- Connection types:
- Wires, 0,5 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
