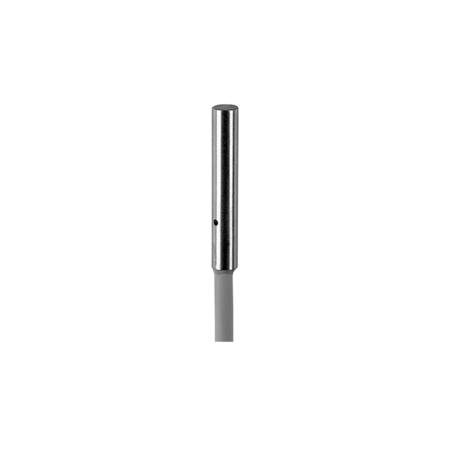

Baumer IFRM 04P35A1/L 10144584 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis of 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP break function (NC) output circuit, supports an output current of 200 mA, and has a voltage drop of less than 2 VDC. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical smooth design is made from stainless steel with an LCP sensing face, measuring 4 mm in diameter and 25 mm in housing length. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 25 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
