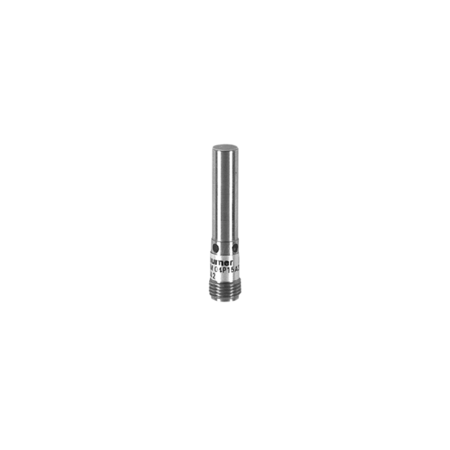

Baumer IFRM 04P35A3/S05L 10144449
Baumer
$163.60
The Baumer IFRM 04P35A3/S05L 10144449 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced safety features include short circuit and reverse polarity protection. The sensor's cylindrical smooth design is made from LCP for the sensing face and stainless steel for the housing, measuring 4 mm in diameter and 24 mm in length. It connects via an M5 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-04P35A3-S05L_EN_20221109_DS.pdf?mediaPK=9055891390494).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
