Baumer

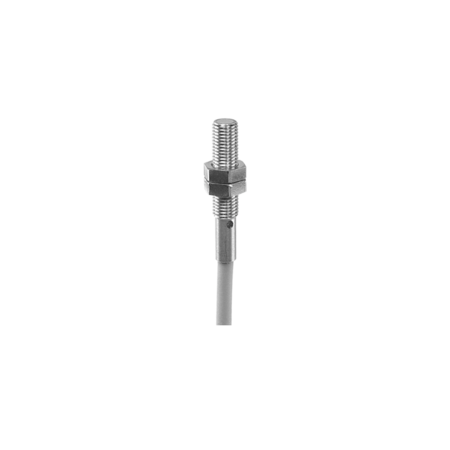

Baumer IFRM 04P35B1/L 10152848

(No reviews yet) Write a Review
SKU:
10152848
MPN:
10152848
Condition:
New
Mounting type:
Flush
Nominal sensing distance Sn:
0.8 mm
Hysteresis:
2 … 20 % of Sr
Output indicator:
LED red
Switching frequency:
3 kHz
Voltage supply range +Vs:
6 … 30 VDC
Current consumption max. (no load):
12 mA
Output circuit:
PNP break function (NC)
Voltage drop Vd:
<2 VDC
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
POM
Housing material:
Stainless steel
Dimension:
4 mm
Housing length:
22 mm
Connection types:
Cable, L=2 m
Tightening torque max.:
1.8 Nm (Front: 1,2 Nm)
Operating temperature:
-25 … +75 °C
Protection class:
IP 67
Datasheet:
View
$229.00

Description

The Baumer IFRM 04P35B1/L 10152848 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded stainless steel housing and a POM sensing face. It measures 4 mm in diameter and 22 mm in housing length, and connects via a 2-meter cable. The sensor can be tightened with a maximum torque of 1.8 Nm and operates within a temperature range of -25 to +75 °C. It is IP 67 rated for protection against dust and immersion.
