Description

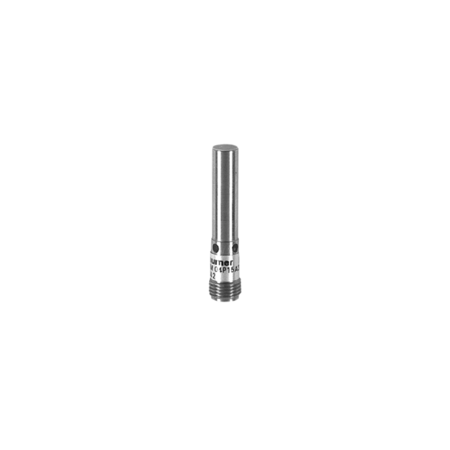

The Baumer IFRM 04P37A3/S05L 11082436 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. It measures 4 mm in diameter and 24 mm in length, and connects via an M5 connector. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-04P37A3-S05L_EN_20221109_DS.pdf?mediaPK=9055913443358).
