Description

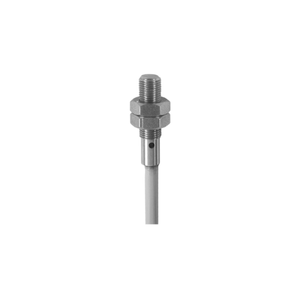

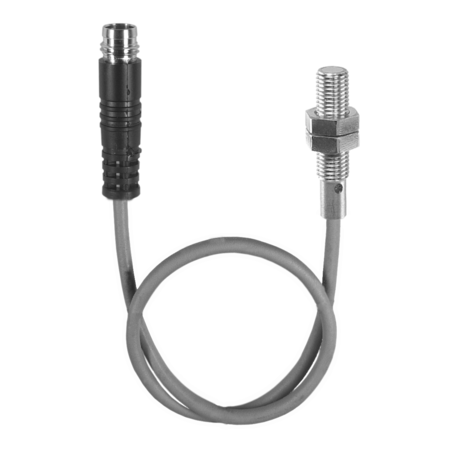

The Baumer IFRM 05N35A3/KS35PL 10160289 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is designed for a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN break function (NC) output circuit, supports an output current of 200 mA, and ensures safety with short circuit and reverse polarity protection. The voltage drop is less than 2 VDC. Constructed with a stainless steel housing and an LCP sensing face, it measures 5 mm in diameter and 20 mm in length. The sensor connects via a flylead connector M8 and requires a maximum tightening torque of 2 Nm. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
