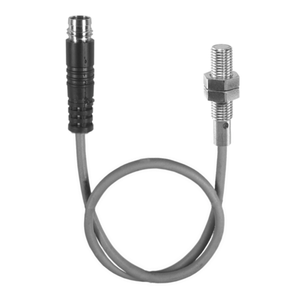

Baumer IFRM 05N35A3/L 10144447
Baumer
$203.00
The Baumer IFRM 05N35A3/L 10144447 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded housing made of stainless steel and an LCP sensing face. Dimensions include a 5 mm diameter and a 20 mm housing length, connected via a 2-meter cable. It can be securely fastened with a maximum tightening torque of 2 Nm. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 20 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
