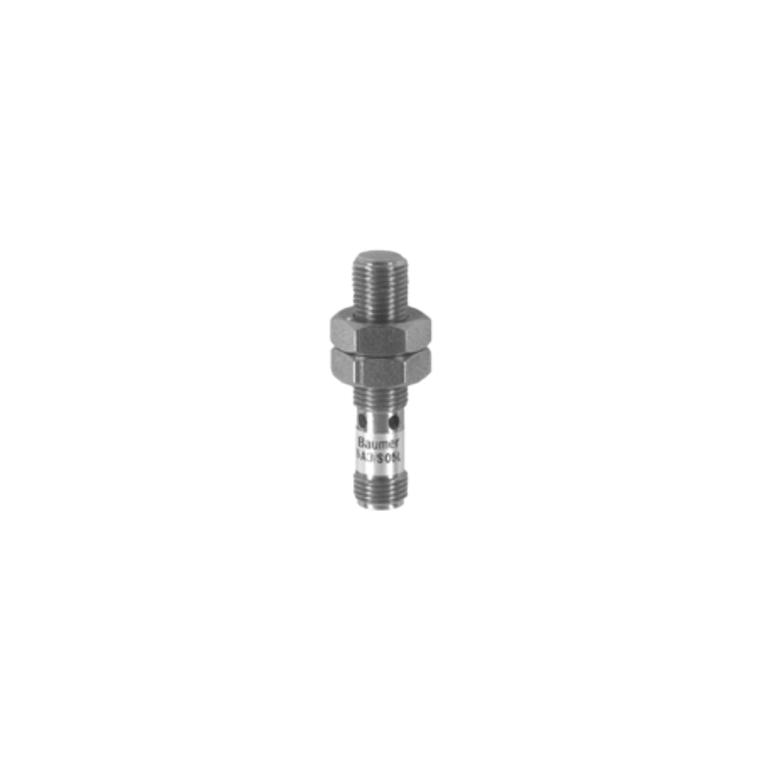

Baumer IFRM 05N35A3/S05L 10144455
Baumer
$190.90
Baumer IFRM 05N35A3/S05L 10144455 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1 mm and a hysteresis of 2 to 20% of Sr. It features a dual red LED output indicator, operates at a switching frequency of 5 kHz, and supports a voltage supply range of 6 to 30 VDC. The sensor has a maximum current consumption of 12 mA at no load, utilizes an NPN break function (NC) output circuit, and can handle an output current of up to 200 mA. It includes short circuit and reverse polarity protection, is made with an LCP sensing face and stainless steel housing, and measures 5 mm in diameter and 24 mm in length. The connection is facilitated via an M5 connector, and it can withstand a tightening torque of up to 2 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05N35A3-S05L_EN_20221109_DS.pdf?mediaPK=9055923273758).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
