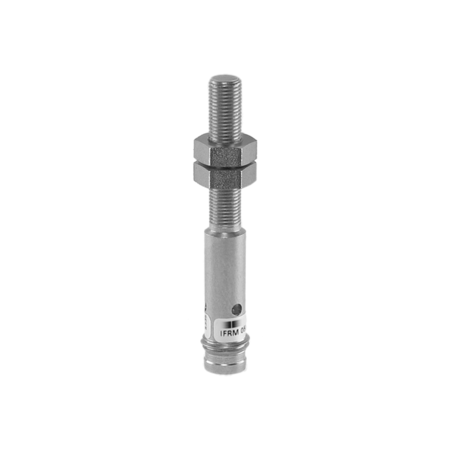

The Baumer IFRM 05P15A1/S35L 10152822 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1 mm and a hysteresis range of 2 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 12 mA. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. Equipped with short circuit and reverse polarity protection, the sensor is constructed with an LCP sensing face and a stainless steel housing, measuring 5 mm in diameter and 45 mm in length. It connects via an M8 connector and requires a maximum tightening torque of 2 Nm. The operating temperature range is from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
