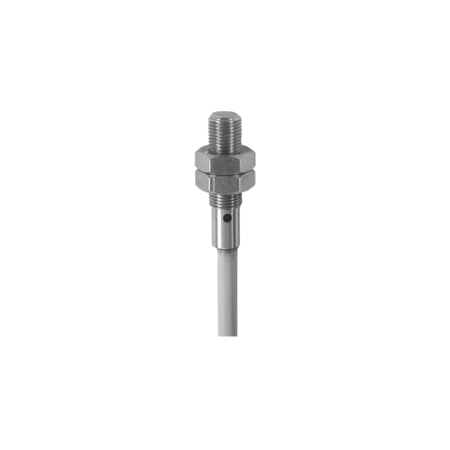

Baumer IFRM 05P15A3/L 10144444 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded housing made of stainless steel and an LCP sensing face. Dimensions include a 5 mm diameter and a 20 mm housing length, connected via a 2-meter cable. It can be securely tightened with a maximum torque of 2 Nm (front: 1.4 Nm) and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05P15A3-L_EN_20221109_DS.pdf?mediaPK=9055924322334).
