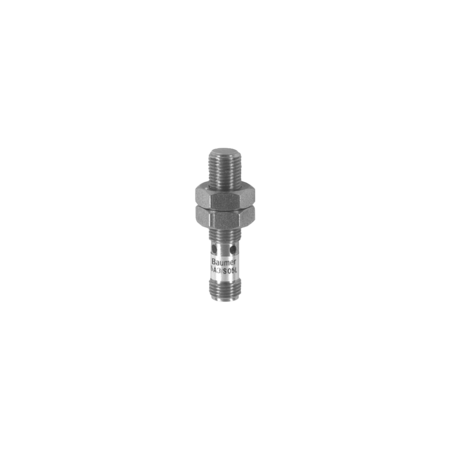

Baumer IFRM 05P17A3/S05L 11082470
Baumer
$190.90
The Baumer IFRM 05P17A3/S05L 11082470 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis of 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 3 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and consumes a maximum of 12 mA with no load. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with short circuit and reverse polarity protection, it is built from stainless steel with an LCP sensing face. The sensor measures 5 mm in diameter and 24 mm in length, connects via an M5 connector, and requires a maximum tightening torque of 2 Nm. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
