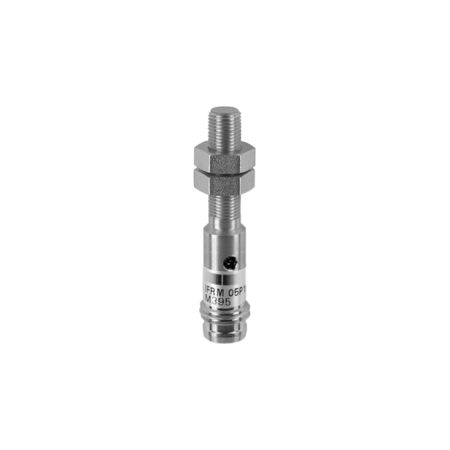

Baumer IFRM 05P17A3/S35L 11082466

Baumer
SKU:
11082466
Availability:
Contact us to confirm availability and lead times.
$190.90
Condition:
New
Current Stock:
Baumer IFRM 05P17A3/S35L 11082466 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis of 2-20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 3 kHz. The sensor supports a voltage supply range of 6-30 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. Equipped with short circuit and reverse polarity protection, the sensor is made from stainless steel with an LCP sensing face. It measures 5 mm in diameter and 36 mm in housing length, and connects via an M8 connector. The maximum tightening torque is 2 Nm (Front: 1.4 Nm). It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05P17A3-S35L_EN_20221109_DS.pdf?mediaPK=9055940018206).
Mounting type:
Flush
Nominal sensing distance Sn:
1.6 mm
Hysteresis:
2 … 20 % of Sr
Output indicator:
3 port LED red
Switching frequency:
3 kHz
Voltage supply range +Vs:
6 … 30 VDC
Current consumption max. (no load):
12 mA
Output circuit:
PNP make function (NO)
Voltage drop Vd:
<2 VDC
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
LCP
Housing material:
Stainless steel
Dimension:
5 mm
Housing length:
36 mm
Connection types:
Connector M8
Tightening torque max.:
2 Nm (Front: 1,4 Nm)
Operating temperature:
-25 … +75 °C
Protection class:
IP 67
Datasheet:
View
