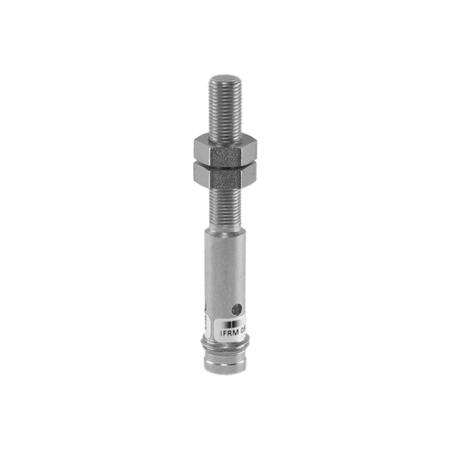

The Baumer IFRM 05P35A1/S35L 10152823 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a PNP break function (NC) output circuit and can handle a switching frequency of up to 5 kHz. The sensor operates within a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 12 mA when unloaded. It includes a 3-port LED red output indicator, ensuring clear visibility of the sensor status. The sensor is designed with a stainless steel housing and an LCP sensing face, measuring 5 mm in diameter and 45 mm in length. It connects via an M8 connector and supports a maximum tightening torque of 2 Nm. This model offers short circuit and reverse polarity protection, operates between -25 to +75 °C, and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
