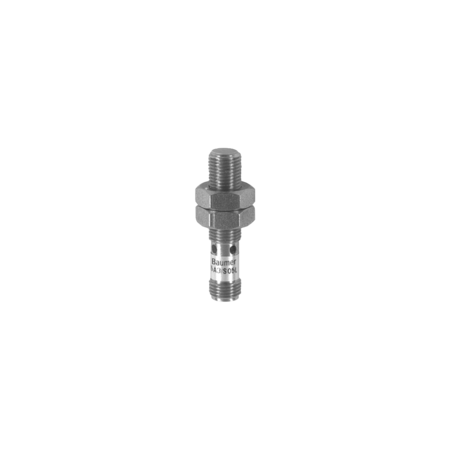

Baumer IFRM 05P37A3/S05L 11082471
Baumer
$190.90
The Baumer IFRM 05P37A3/S05L 11082471 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis of 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 3 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced durability is ensured with short circuit and reverse polarity protection. The sensor is constructed with an LCP sensing face and a stainless steel housing, measuring 5 mm in diameter and 24 mm in length. It connects via an M5 connector and requires a maximum tightening torque of 2 Nm. Suitable for operating temperatures ranging from -25 to +75 °C, it is rated IP 67 for protection against dust and water ingress. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05P37A3-S05L_EN_20221109_DS.pdf?mediaPK=9055934742558).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
