Baumer IFRM 05P37A3/S35L 11082467
Baumer

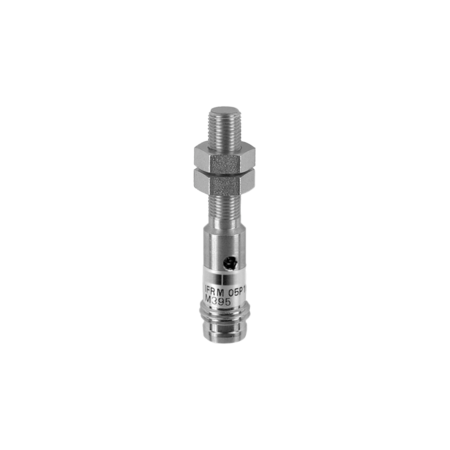

The Baumer IFRM 05P37A3/S35L 11082467 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a 3 kHz switching frequency and a PNP break function (NC) output circuit. The sensor is equipped with a 3-port LED red output indicator and operates within a voltage supply range of 6 to 30 VDC, consuming a maximum of 12 mA with no load. It supports an output current of 200 mA and includes short circuit and reverse polarity protection. The sensor's cylindrical threaded design uses LCP for the sensing face and stainless steel for the housing, measuring 5 mm in diameter and 36 mm in length. It connects via an M8 connector and requires a maximum tightening torque of 2 Nm. Suitable for operating temperatures from -25 to +75 °C, it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 36 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
