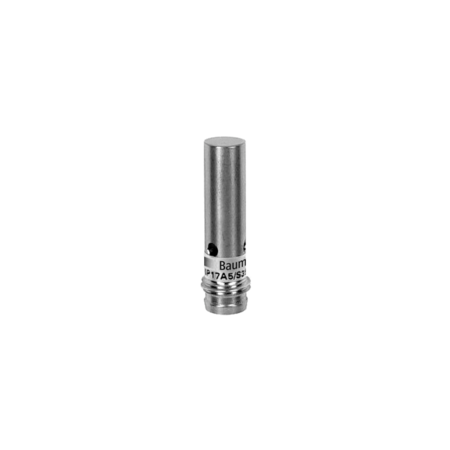

Baumer IFRM 06N17A5/S35L 10140590
Baumer
$142.60
Baumer IFRM 06N17A5/S35L 10140590 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor offers short circuit and reverse polarity protection. Its cylindrical smooth design is made with a PBT sensing face and a stainless steel housing, measuring 6.5 mm in diameter and 28 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 28 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
