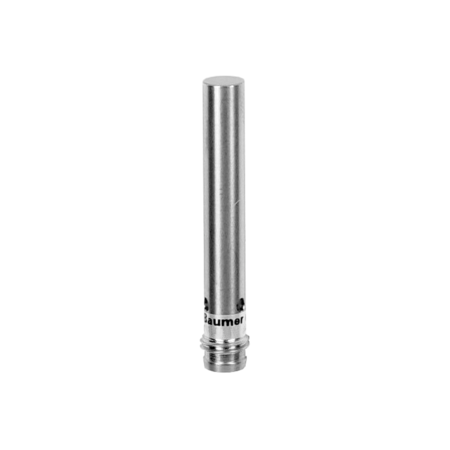

Baumer IFRM 06N37A1/S35L 10140594

Baumer
SKU:
10140594
$108.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Baumer IFRM 06N37A1/S35L 10140594 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical smooth design is made from PBT for the sensing face and stainless steel for the housing, measuring 6.5 mm in diameter and 46 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06N37A1-S35L_EN_20221109_DS.pdf?mediaPK=9055958859806).
Mounting type:
Flush
Nominal sensing distance Sn:
2 mm
Hysteresis:
3 … 20 % of Sr
Output indicator:
3 port LED red
Switching frequency:
5 kHz
Voltage supply range +Vs:
6 … 36 VDC
Current consumption max. (no load):
12 mA
Output circuit:
NPN break function (NC)
Voltage drop Vd:
<2 VDC
Output current:
200 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical smooth
Material (sensing face):
PBT
Housing material:
Stainless steel
Dimension:
6.5 mm
Housing length:
46 mm
Connection types:
Connector M8
Operating temperature:
-25 … +75 °C
Protection class:
IP 67
Datasheet:
View
