Description

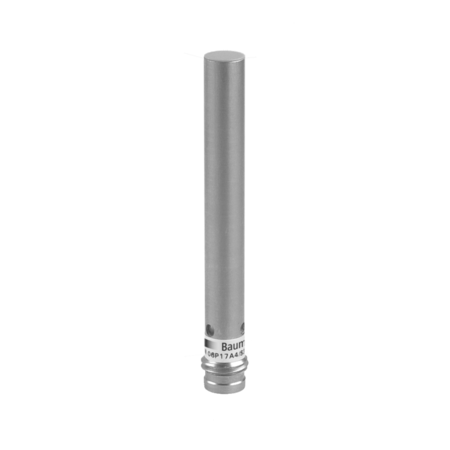

The Baumer IFRM 06N37A4/S35L 10160254 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when no load is present. It utilizes an NPN break function (NC) output circuit with a voltage drop of less than 2 VDC and supports an output current of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth housing made of stainless steel and a PBT sensing face. It measures 6.5 mm in diameter and 56 mm in housing length, and connects via an M8 connector. Suitable for operating temperatures ranging from -25 to +75 °C, it is protected against ingress with an IP 67 rating. For more detailed information, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06N37A4-S35L_EN_20221109_DS.pdf?mediaPK=9055952568350).
