Description

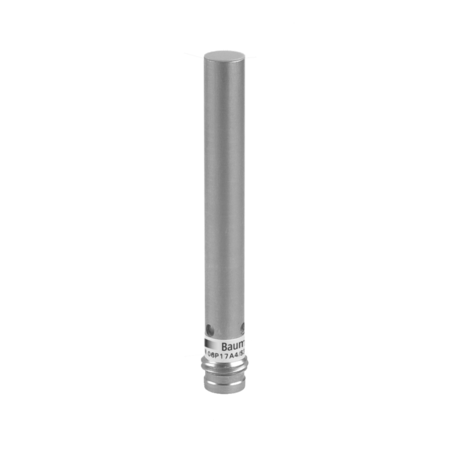

Baumer IFRM 06P17A4/S35L 10155368 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical smooth design is made from PBT for the sensing face and stainless steel for the housing, measuring 6.5 mm in diameter and 56 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06P17A4-S35L_EN_20221109_DS.pdf?mediaPK=9055954173982).
