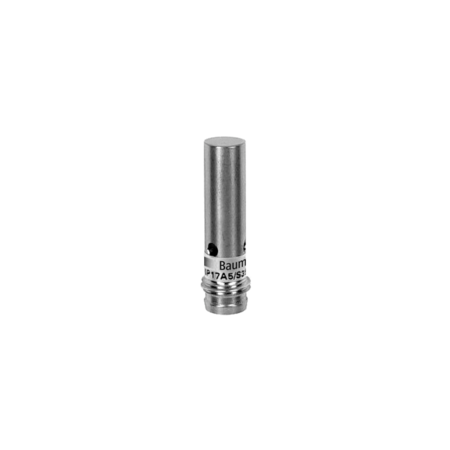

Baumer IFRM 06P17A5/S35L 10138759
Baumer
$136.70
The Baumer IFRM 06P17A5/S35L 10138759 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when no load is present. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor offers short circuit and reverse polarity protection. Its cylindrical smooth design is made from PBT for the sensing face and stainless steel for the housing, measuring 6.5 mm in diameter and 28 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and water ingress. For more details, you can view the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06P17A5-S35L_EN_20221109_DS.pdf?mediaPK=9055966724126).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 28 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
