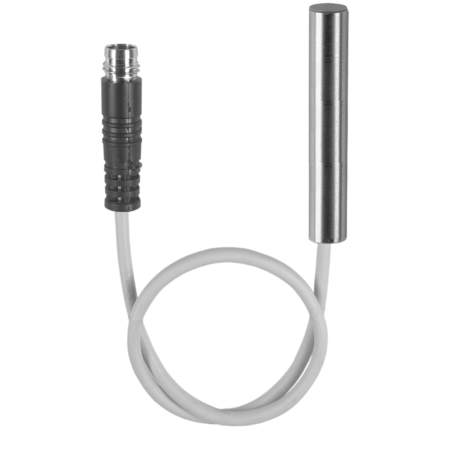

Baumer IFRM 06P37A4/KS35L 10160308
Baumer
$190.90
Baumer IFRM 06P37A4/KS35L 10160308 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3-20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6-36 VDC and has a maximum current consumption of 12 mA when no load is present. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical smooth design is made from PBT for the sensing face and stainless steel for the housing, measuring 6.5 mm in diameter and 50 mm in housing length. It connects via a flylead connector M8 and operates within a temperature range of -25 to +75 °C. The sensor is rated IP 67 for protection against dust and water ingress. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06P37A4-KS35L_EN_20221109_DS.pdf?mediaPK=9055954698270).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 50 mm
- Connection types:
- Flylead connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
