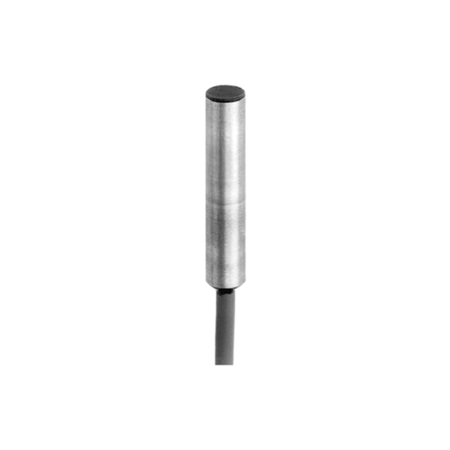

The Baumer IFRM 06X9503 10234869 is a flush-mounted inductive sensor with a nominal sensing distance of 1.5 mm. It features a switching frequency of 5 kHz and operates on a normal voltage of 8.2 VDC, with a supply range of 5 to 30 VDC. The sensor has a low current consumption, with less than 4 mA when undamped and less than 1 mA when damped, and a maximum no-load consumption of 10 mA. It utilizes a NAMUR output circuit and ensures minimal voltage fluctuation with less than 10% residual ripple. The sensor's cylindrical, smooth design is made from PBT for the sensing face and brass nickel-plated for the housing, measuring 6.5 mm in diameter and 25 mm in length. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. Certified with ATEX 1G for explosive environments, it offers IP 67 protection, ensuring durability and reliability in various industrial settings. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-06X9503_EN_20230831_DS.pdf?mediaPK=9095611383838).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.5 mm
- Approvals/certificates:
- ATEX 1G
- Switching frequency:
- 5 kHz
- Normal operating voltage:
- 8.2 VDC
- Voltage supply range +Vs:
- 5 30 VDC
- Current consumption undamped:
- > 4 mA
- Current consumption damped:
- < 1 mA
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NAMUR
- Residual ripple:
- < 10 % Vs
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 6.5 mm
- Housing length:
- 25 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
