Description

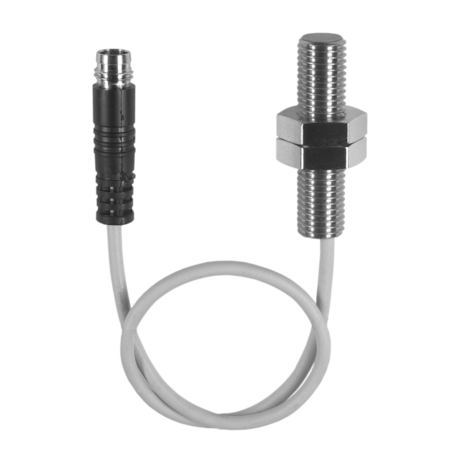

The Baumer IFRM 08N1701/KS35L 10160313 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 12 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. Equipped with short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded housing made of stainless steel and a PBT sensing face. It measures 8 mm in diameter and 30 mm in housing length, and connects via a flylead connector M8. The sensor can be tightened with a maximum torque of 10 Nm (Front: 7 Nm) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and immersion.
