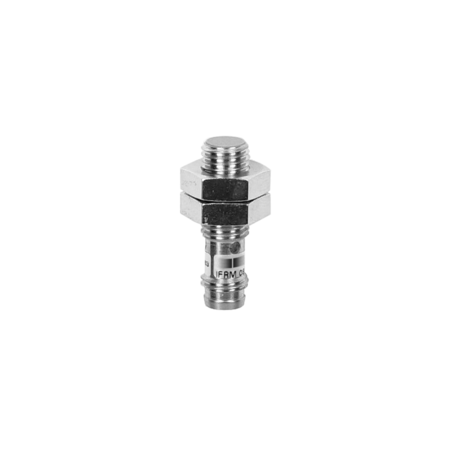

Baumer IFRM 08N17A5/S35L 10142605
Baumer
$144.70
Baumer IFRM 08N17A5/S35L 10142605 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when no load is present. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical threaded design is made from stainless steel with a PBT sensing face, and it measures 8 mm in diameter and 28 mm in housing length. The connection is facilitated via an M8 connector, and it can be tightened with a maximum torque of 10 Nm (Front: 7 Nm). The operating temperature range is from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-08N17A5-S35L_EN_20221109_DS.pdf?mediaPK=9055990841374).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 28 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (Front: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
