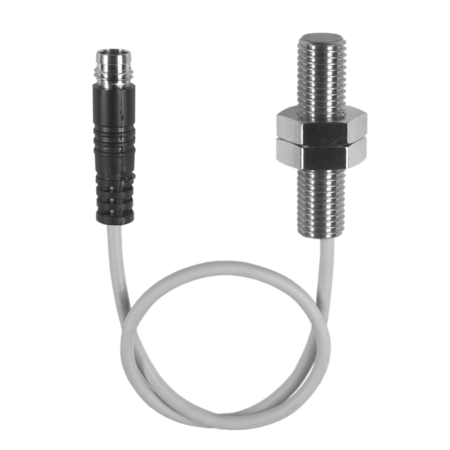

Baumer IFRM 08N3701/KS35L 10160314 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3-20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6-36 VDC and has a maximum no-load current consumption of 12 mA. It includes an NPN break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor offers short circuit and reverse polarity protection. Its cylindrical threaded design is made with a PBT sensing face and a stainless steel housing, measuring 8 mm in diameter and 30 mm in length. It connects via a flylead connector M8 and requires a maximum tightening torque of 10 Nm (Front: 7 Nm). The operating temperature range is -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 30 mm
- Connection types:
- Flylead connector M8
- Tightening torque max.:
- 10 Nm (Front: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
