Baumer IFRM 06P17A4/KS35L
Baumer

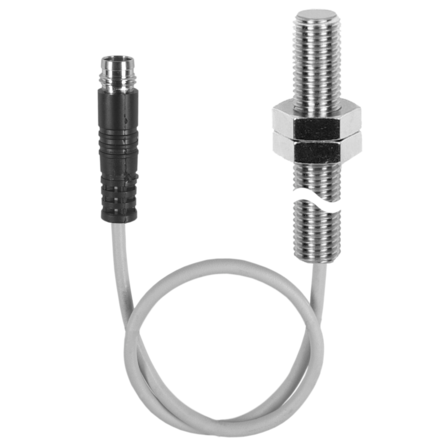

The Baumer IFRM 08P17A4/KS35L 10160323 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is built for durability with a stainless steel housing and a PBT sensing face. It measures 8 mm in diameter and 50 mm in length, and connects via a flylead connector M8. The sensor can be tightened with a maximum torque of 10 Nm (7 Nm at the front) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 50 mm
- Connection types:
- Flylead connector M8
- Tightening torque max.:
- 10 Nm (Front: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
