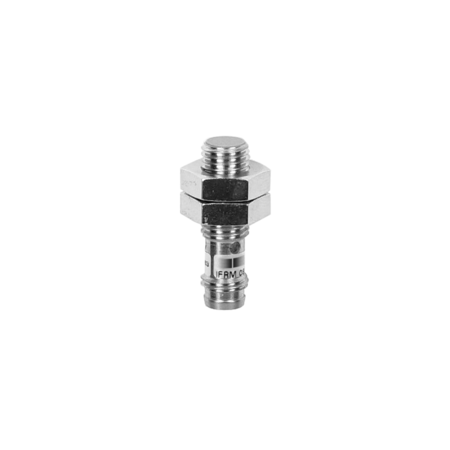

Baumer IFRM 08P37A5/S35L 10141763
Baumer
$144.70
Baumer IFRM 08P37A5/S35L 10141763 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis of 3-20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6-36 VDC and has a maximum current consumption of 12 mA with no load. It includes a PNP break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its cylindrical threaded design uses PBT for the sensing face and stainless steel for the housing, measuring 8 mm in diameter and 28 mm in length. It connects via an M8 connector and requires a maximum tightening torque of 10 Nm (Front: 7 Nm). The operating temperature range is -25 to +75 °C, and it is rated IP 67 for protection.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 28 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (Front: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
