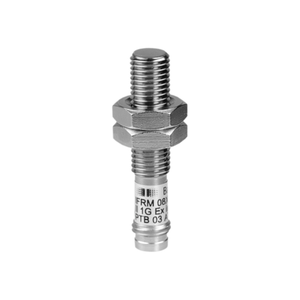

Baumer IFRM 08X9501/S35 10126466 is a flush-mounted inductive sensor with a nominal sensing distance of 1.5 mm and an operating voltage of 8.2 VDC. It features a switching frequency of 5 kHz and can operate within a voltage supply range of 5 to 30 VDC. The sensor has a low current consumption, with less than 4 mA when undamped and less than 1 mA when damped, with a maximum of 10 mA with no load. It is equipped with a NAMUR output circuit and has a residual ripple of less than 10% Vs. The cylindrical threaded design is made from stainless steel with a PBT sensing face, and it measures 8 mm in diameter and 50 mm in length. The sensor includes an M8 connector for connections and operates in temperatures ranging from -25 to +75 °C. It is ATEX 1G certified for explosive atmospheres and offers IP 67 protection against dust and water ingress. [View datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-08X9501-S35_EN_20230831_DS.pdf?mediaPK=9095612563486).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.5 mm
- Approvals/certificates:
- ATEX 1G
- Switching frequency:
- 5 kHz
- Normal operating voltage:
- 8.2 VDC
- Voltage supply range +Vs:
- 5 30 VDC
- Current consumption undamped:
- > 4 mA
- Current consumption damped:
- < 1 mA
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NAMUR
- Residual ripple:
- < 10 % Vs
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
