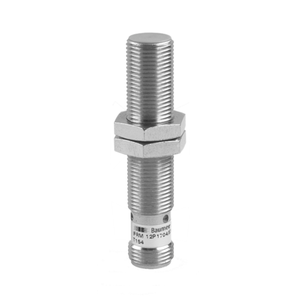

The Baumer IFRM 12N1701/S14L 10214923 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 2 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA with no load. It includes an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. It is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 50 mm in housing length. The connection is facilitated via an M12 connector, with a maximum tightening torque of 15 Nm (Front: 10 Nm). It operates within a temperature range of -25 to +75 °C and is rated at protection class IP 67.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
