Baumer IFRM 12N17X1/L 11096374
Baumer

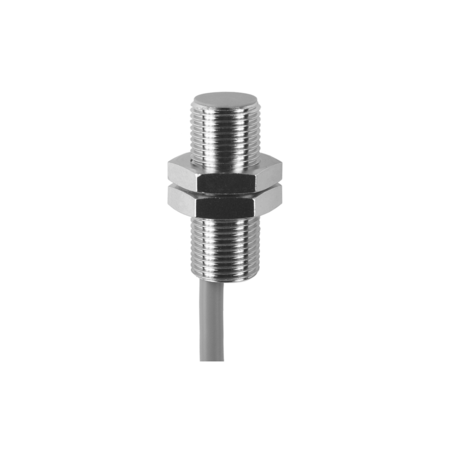

The Baumer IFRM 12N17X1/L 11096374 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and is equipped with an NPN make function (NO) output circuit. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA. It includes short circuit and reverse polarity protection, and is designed with a PBT sensing face and a brass nickel-plated housing. The sensor has a diameter of 12 mm, a housing length of 30.4 mm, and comes with a 2-meter cable connection. It can handle a maximum tightening torque of 15 Nm and is rated IP 67 for protection against dust and water ingress. This sensor is ATEX 3D certified for use in hazardous environments and has a switching frequency of 2 kHz. The voltage drop is less than 2 VDC.
