Description

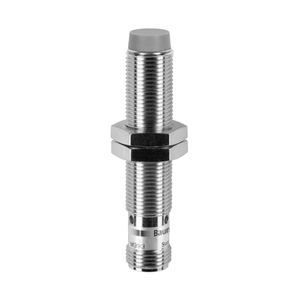

The Baumer IFRM 12P13T1/PL 11016679 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 6 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 2 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes a PNP make function (NO) output circuit with a maximum output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. It is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 50 mm in length. The connection is facilitated via a 2-meter PUR cable with three 0.25 mm² wires. It can withstand a tightening torque of up to 15 Nm and operates within a temperature range of -40 to +80 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
