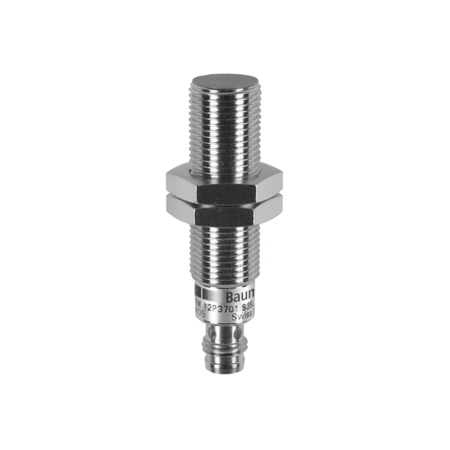

Baumer IFRM 12P3701/S35L 10225153
Baumer
$109.10
The Baumer IFRM 12P3701/S35L 10225153 is a flush-mounted inductive sensor with a nominal sensing distance of 4 mm and a hysteresis range of 3 to 25% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 2 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 18 mA when no load is present. It includes a PNP break function (NC) output circuit with a voltage drop of less than 3 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded brass nickel-plated housing and a PBT sensing face. It measures 12 mm in diameter and 50 mm in housing length, and connects via an M8 connector. The maximum tightening torque is 15 Nm, with 10 Nm at the front. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 25 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 18 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <3 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
