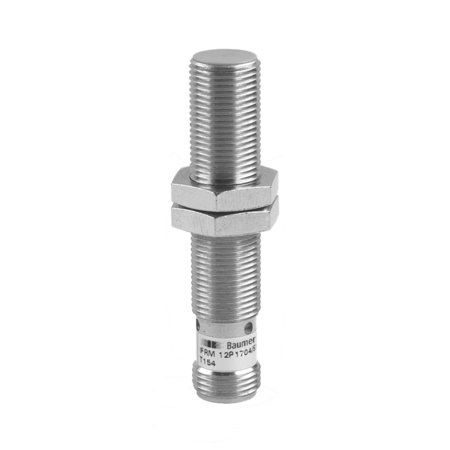

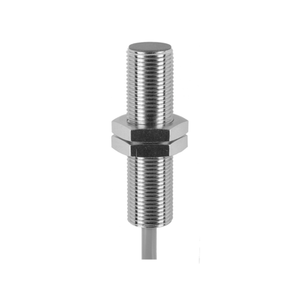

The Baumer IFRM 12P3704/S14L 10156226 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and a hysteresis range of 3 to 20% of Sr. It features a PNP break function (NC) output circuit and can handle a switching frequency of 2 kHz. The sensor operates within a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA with no load. It supports an output current of 200 mA and includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, with a PBT sensing face, and it connects via an M12 connector. It is designed to withstand operating temperatures from -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. The sensor also features a 3-port LED red output indicator and has a maximum tightening torque of 15 Nm.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
