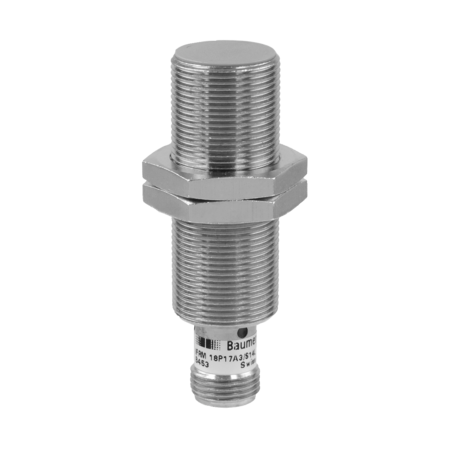

Baumer IFRM 18N37A3/S14L 11078658
Baumer
$104.60
The Baumer IFRM 18N37A3/S14L 11078658 is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and a hysteresis range of 3 to 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 500 Hz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA when unloaded. It includes an NPN break function (NC) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, the sensor is built from brass nickel-plated housing and a PBT sensing face. It measures 18 mm in diameter and 60 mm in housing length, and connects via an M12 connector. The sensor can be tightened with a maximum torque of 40 Nm and operates within a temperature range of -25 to +75 °C. It is rated with an IP 67 protection class, ensuring robust performance in diverse environments. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18N37A3-S14L_EN_20221109_DS.pdf?mediaPK=9056031834142).
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
