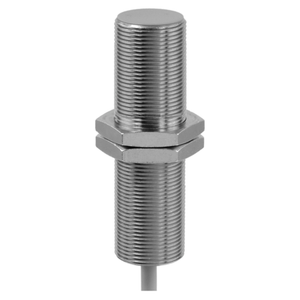

Baumer IFRM 18P17A4/S14L 11111677
Baumer
$104.60
Baumer IFRM 18P17A4/S14L 11111677 is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and adjustable hysteresis between 3% and 20% of Sr. It features a PNP make function (NO) output circuit, a switching frequency of 500 Hz, and a maximum output current of 200 mA. The sensor operates on a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 10 mA and a voltage drop of less than 2 VDC. It includes a 3-port red LED output indicator, short circuit and reverse polarity protection, and is housed in brass nickel-plated material with a PBT sensing face. The sensor has a diameter of 18 mm, a length of 75 mm, and connects via an M12 connector. It can withstand a tightening torque of up to 40 Nm and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 75 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
