Baumer IFRM 18P17A5/S14L 11078673
Baumer

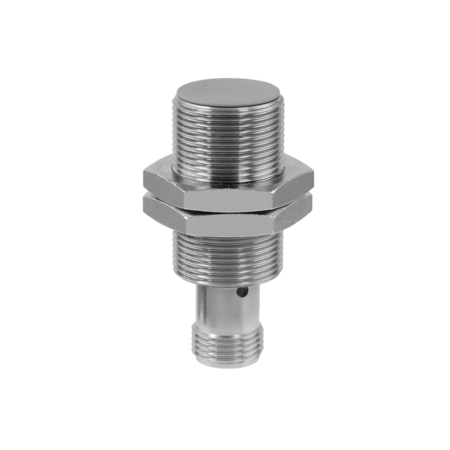

Baumer IFRM 18P17A5/S14L 11078673 is a quasi-flush, cylindrical threaded inductive sensor with a nominal sensing distance of 8 mm and a hysteresis of 3-20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6-36 VDC and has a maximum current consumption of 10 mA with no load. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. It is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 45 mm in housing length. The sensor connects via an M12 connector and has a maximum tightening torque of 40 Nm. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. [View datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-18P17A5-S14L_EN_20221109_DS.pdf?mediaPK=9056024494110).
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
