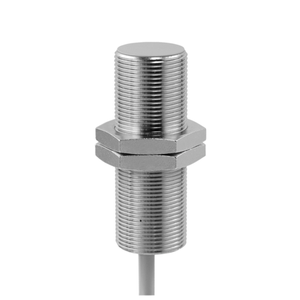

Baumer IFRM 18P17M1/S14L 11013673
Baumer
$162.80
Baumer IFRM 18P17M1/S14L 11013673 is a flush-mounted, cylindrical threaded proximity sensor designed for outdoor use. It features a nominal sensing distance of 10 mm with a hysteresis of 2 to 15% of Sr. The sensor is equipped with a red LED output indicator and operates at a switching frequency of 400 Hz. It supports a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 24 mA. The output circuit is a PNP make function (NO) with a maximum output current of 200 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, with a PBT sensing face, and it connects via an M12 connector. It can withstand operating temperatures from -40 to +80 °C and meets IP 67 protection class standards. The sensor has a dimension of 18 mm in diameter and a housing length of 60 mm, with a maximum tightening torque of 40 Nm (Front: 28 Nm).
- Mounting type:
- Flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 10 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 24 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm (Front: 28 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
- Datasheet:
- View
