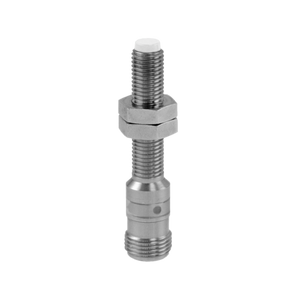

The Baumer IFRR 08P33T1/S14L-9 11016167 is a non-flush, cylindrical threaded sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 3 mm with a hysteresis range of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates within a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 10 mA. The sensor supports a PNP break function (NC) output circuit, with a maximum output current of 200 mA and reduced output current under cleaning temperatures (up to 100 mA). It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel 1.4404 (V4A) and LCP for the sensing face, ensuring durability and resistance to harsh conditions. It can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. The sensor is highly resistant to vibrations and shocks, meeting EN 61373 and EN 60068 standards, and offers a protection class of IP 68/69K & proTect+. It connects via an M12 connector and is designed to handle a tightening torque of up to 10 Nm.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 3 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 8 mm
- Housing length:
- 55 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 10 Nm (Front: 7 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
