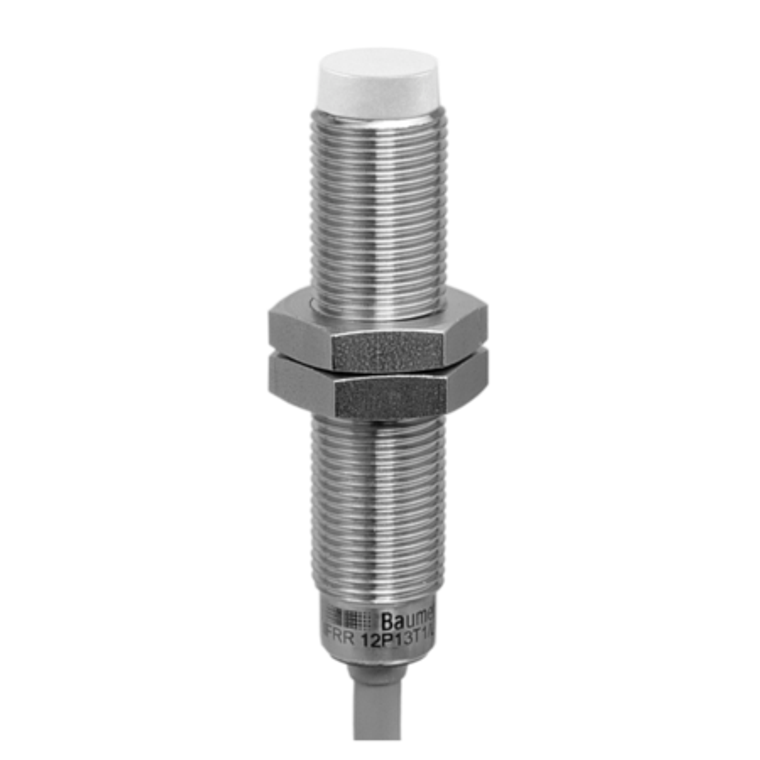

The Baumer IFRR 12P33T1/L-9 11016092 is a non-flush, cylindrical threaded proximity sensor designed for washdown applications, featuring a nominal sensing distance of 6 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates with a PNP break function (NC) output circuit. The sensor supports a switching frequency of 1 kHz and a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA at no load. It can handle an output current of 200 mA, which reduces to under 100 mA at cleaning temperatures. Equipped with short circuit and reverse polarity protection, the sensor is built from stainless steel 1.4404 (V4A) and LCP for the sensing face, ensuring durability and resistance to harsh conditions. It has a housing length of 55 mm and a diameter of 12 mm, and it connects via a 2-meter PVC cable. The sensor can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. It boasts an IP 68/69K protection class with proTect+ sealing, and meets stringent vibration and shock resistance standards as per EN 61373: 2010.
- Mounting type:
- Non-flush
- Special type:
- Washdown design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Tightening torque max.:
- 20 Nm (Front: 14 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
