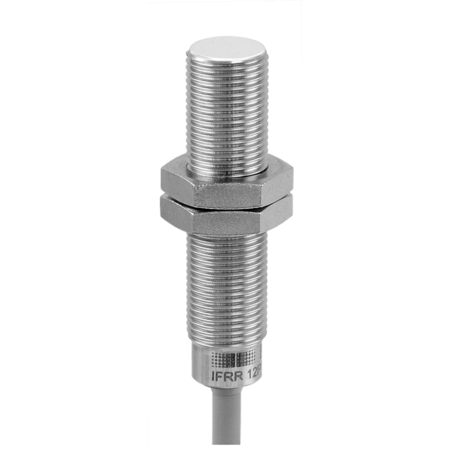

Baumer IFRR 12P37T1/L-9 11016189
Baumer
$207.70
The Baumer IFRR 12P37T1/L-9 11016189 is a flush-mounted, cylindrical threaded proximity sensor designed for washdown applications. It features a nominal sensing distance of 4 mm with a hysteresis of 2 to 15% of Sr. The sensor is equipped with a red LED output indicator and operates on a voltage supply range of 6 to 30 VDC, consuming a maximum of 10 mA with no load. It offers a PNP break function (NC) output circuit, supporting an output current of 200 mA and reducing to less than 100 mA at cleaning temperatures. The sensor includes short circuit and reverse polarity protection, and is constructed with an LCP sensing face and a stainless steel 1.4404 (V4A) housing. It measures 12 mm in diameter and 55 mm in length, with a cable PVC connection type of 2 meters. The sensor can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. It is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and meets stringent vibration and shock resistance standards as per EN 61373: 2010 and EN 60068-2. The sensor is Ecolab approved, ensuring suitability for hygienic applications.
- Mounting type:
- Flush
- Special type:
- Washdown design
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Tightening torque max.:
- 20 Nm (Front: 14 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
