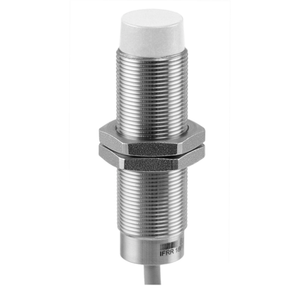

Baumer IFRR 18N13T1/L-9 11016050
Baumer
$216.00
The Baumer IFRR 18N13T1/L-9 11016050 is a non-flush, cylindrical threaded inductive sensor designed for washdown applications, featuring a nominal sensing distance of 12 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates with a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It offers an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Enhanced durability features include short circuit and reverse polarity protection, with a robust stainless steel 1.4404 (V4A) housing and LCP sensing face. The device is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and can withstand significant vibration and shock as per EN 61373: 2010 standards. It operates effectively within a temperature range of -40 to +80 °C and can handle cleaning temperatures between 80 and +100 °C for up to 30 minutes per day. The sensor is connected via a 2-meter PVC cable and is certified by Ecolab, ensuring suitability for stringent hygiene requirements.
- Mounting type:
- Non-flush
- Special type:
- Washdown design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
- Datasheet:
- View
