Baumer IFRR 18N17T1/L-9 11013671

Baumer
SKU:
11013671
Availability:
Contact us to confirm availability and lead times.
$216.00
Condition:
New
Current Stock:

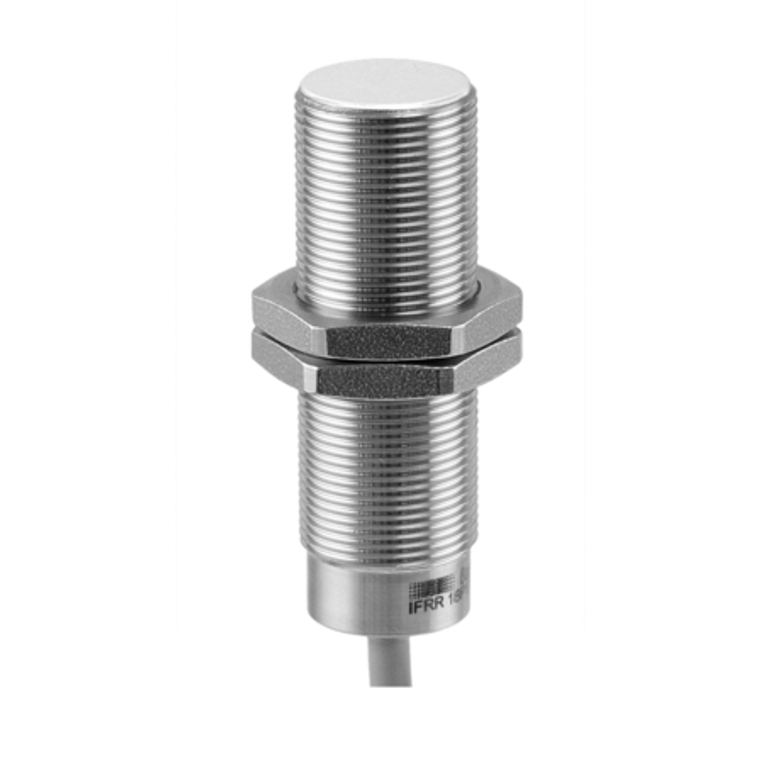

The Baumer IFRR 18N17T1/L-9 11013671 is a quasi-flush, cylindrical threaded inductive sensor designed for washdown applications, featuring a nominal sensing distance of 8 mm and adjustable hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates with a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It offers an NPN make function (NO) output circuit with a maximum output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Equipped with short circuit and reverse polarity protection, the sensor is built from high-grade stainless steel (1.4404, V4A) and LCP for the sensing face, ensuring durability and resistance to harsh conditions. It has a housing length of 55 mm and a diameter of 18 mm, with a PVC cable connection of 2 meters. The sensor can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. It is rated IP 68/69K & proTect+ for optimal protection against dust and water ingress, and meets stringent vibration and shock resistance standards as per EN 61373: 2010 and EN 60068-2. The tightening torque can reach up to 55 Nm, ensuring secure installation.
Mounting type:
Quasi-flush
Special type:
Washdown design
Nominal sensing distance Sn:
8 mm
Hysteresis:
2 … 15 % of Sr
Output indicator:
LED red
Approvals/certificates:
Ecolab
Switching frequency:
500 Hz
Voltage supply range +Vs:
6 … 30 VDC
Current consumption max. (no load):
10 mA
Output circuit:
NPN make function (NO)
Voltage drop Vd:
<2 VDC
Output current:
200 mA
Output current (at cleaning temperature):
< 100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
LCP
Housing material:
Stainless steel 1.4404 (V4A)
Dimension:
18 mm
Housing length:
55 mm
Connection types:
Cable PVC, 2 m
Tightening torque max.:
55 Nm (Front: 38 Nm)
Operating temperature:
-40 … +80 °C
Cleaning temperature:
80 … +100 °C (30 min/day)
Protection class:
IP 68/69K & proTect+
Vibration resistance:
EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
Shock resistance:
EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
