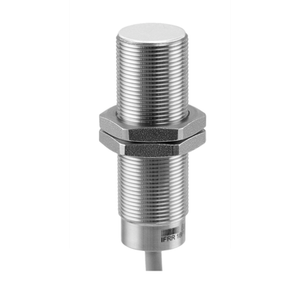

Baumer IFRR 18N17T1/S14L-9 11013637
Baumer
$207.70
The Baumer IFRR 18N17T1/S14L-9 11013637 is a quasi-flush, cylindrical threaded proximity sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 8 mm with a hysteresis of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates with a switching frequency of 500 Hz and a voltage supply range of 6 to 30 VDC. The sensor supports a maximum output current of 200 mA, with a reduced current of less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection, and is constructed with a stainless steel 1.4404 (V4A) housing and an LCP sensing face. The device connects via an M12 connector and can withstand operating temperatures from -40 to +80 °C, with cleaning temperatures up to 100 °C for 30 minutes per day. It is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and meets stringent vibration and shock resistance standards.
- Mounting type:
- Quasi-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
- Datasheet:
- View
