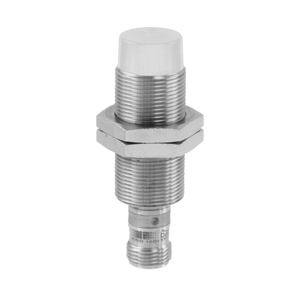

The Baumer IFRR 18P13T1/PL-9 11013662 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 12 mm and a hysteresis of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 10 mA. It utilizes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Equipped with short circuit and reverse polarity protection, the sensor is made from stainless steel 1.4404 (V4A) and LCP for the sensing face, ensuring durability. It has a housing length of 55 mm and connects via a 2-meter PUR cable. The sensor can withstand operating temperatures from -40 to +80 °C and cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. It is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress, and meets EN 61373: 2010 standards for vibration and shock resistance, making it highly reliable in harsh environmental conditions.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PUR 3 x 0,25, 2 m
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
