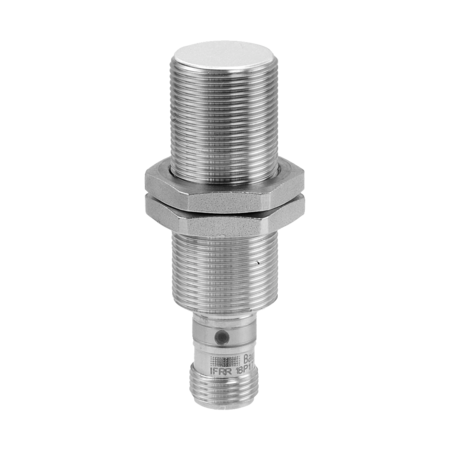

Baumer IFRR 18P17T1/S14L-9 11013635
Baumer
Baumer IFRR 18P17T1/S14L-9 11013635 is a quasi-flush, cylindrical threaded inductive sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 8 mm with a hysteresis of 2 to 15% of Sr. The sensor is equipped with a red LED output indicator and supports a PNP make function (NO) output circuit. It operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. The sensor offers short circuit and reverse polarity protection, and is constructed with an LCP sensing face and a stainless steel 1.4404 (V4A) housing. Dimensions include an 18 mm diameter and a 60 mm housing length, with an M12 connector type. It can withstand operating temperatures from -40 to +80 °C and cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. The sensor is highly durable, rated IP 68/69K & proTect+ for protection, and meets EN 61373: 2010 (category 3) standards for vibration and shock resistance.
- Mounting type:
- Quasi-flush
- Special type:
- Outdoor design Washdown design
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
