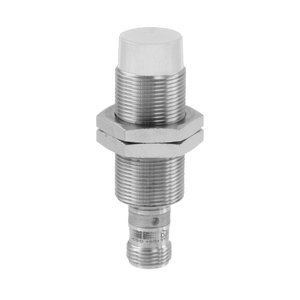

The Baumer IFRR 18P33T1/L-9 11016019 is a non-flush, cylindrical threaded proximity sensor designed for washdown applications, featuring a nominal sensing distance of 12 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and is equipped with a PNP break function (NC) output circuit. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to under 100 mA at cleaning temperatures. It offers short circuit and reverse polarity protection, and is constructed with a stainless steel 1.4404 (V4A) housing and an LCP sensing face. The device measures 18 mm in diameter and 55 mm in length, with a PVC cable connection of 2 m. It can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. The sensor is highly durable, rated IP 68/69K & proTect+ for maximum protection against dust and high-pressure water, and meets stringent vibration and shock resistance standards as per EN 61373: 2010 and EN 60068-2. It is Ecolab approved and suitable for demanding environments requiring frequent cleaning and hygiene maintenance.
- Mounting type:
- Non-flush
- Special type:
- Washdown design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 18 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Tightening torque max.:
- 55 Nm (Front: 38 Nm)
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Vibration resistance:
- EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
- Shock resistance:
- EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
- Datasheet:
- View
