Description

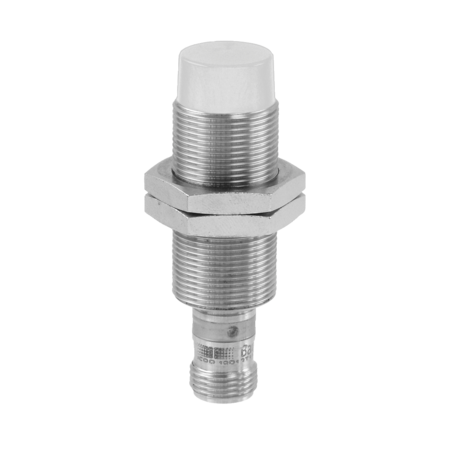

The Baumer IFRR 18P33T1/S14L-9 11016015 is a non-flush, cylindrical threaded sensor designed for outdoor and washdown environments. It features a nominal sensing distance of 12 mm with a hysteresis range of 2 to 15% of Sr. Equipped with a red LED output indicator, it operates on a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 10 mA. The sensor supports a PNP break function (NC) output circuit with a maximum output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel 1.4404 (V4A) and LCP for the sensing face, ensuring durability and resistance to harsh conditions. It can withstand operating temperatures from -40 to +80 °C and cleaning temperatures up to 100 °C for 30 minutes per day. The sensor is highly resistant to vibrations and shocks, meeting EN 61373 and EN 60068 standards, and offers a protection class of IP 68/69K & proTect+. It connects via an M12 connector and is designed to handle a tightening torque of up to 55 Nm.
