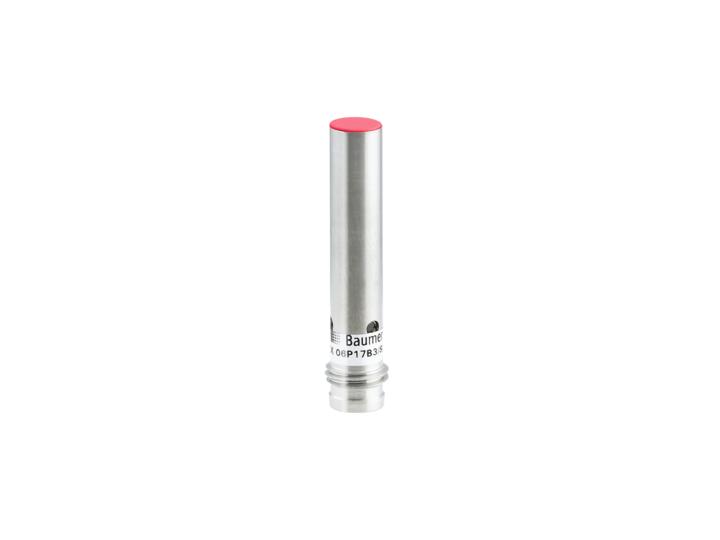

Baumer IGYX 06P17B3/S35L
Baumer
The Baumer IGYX 06P17B3/S35L is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and an assured sensing distance of 1.6 mm. It features a temperature drift of ±10% of Sr within a temperature range of 0 to +60 °C and a hysteresis of 3 to 20% of Sr. The sensor is equipped with a 3-port red LED output indicator and operates at a switching frequency of 3 kHz. It requires a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is a PNP make function (NO) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, with a PBT red sensing face and a stainless steel housing. It measures 6.5 mm in diameter and 36 mm in housing length, and it connects via an M8 connector. The operating temperature range is -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IGYX-06P17B3-S35L_EN_20210429_DS.pdf?mediaPK=9018944389150).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- 1.6 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT, red
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 36 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
